P6/P8/P10 Adhesive LED Film Display High Transparancy Rate Ultra Thin 3mm
Product Description:
This soft film screen is suitable for shopping mall advertisement or window glass. It is extremely easy to install and control with nearly thin as paper. T-PAPER series LED adhesive film maximizes the effect of advertising and replaces conventional signs and boards for promoting.
Features:
- LED:Light drive in one,independent research and development, high reliability, mini LED device,industry leading
- High transmittance:The transmittance is more than 60%, which does not affect the glass daylighting

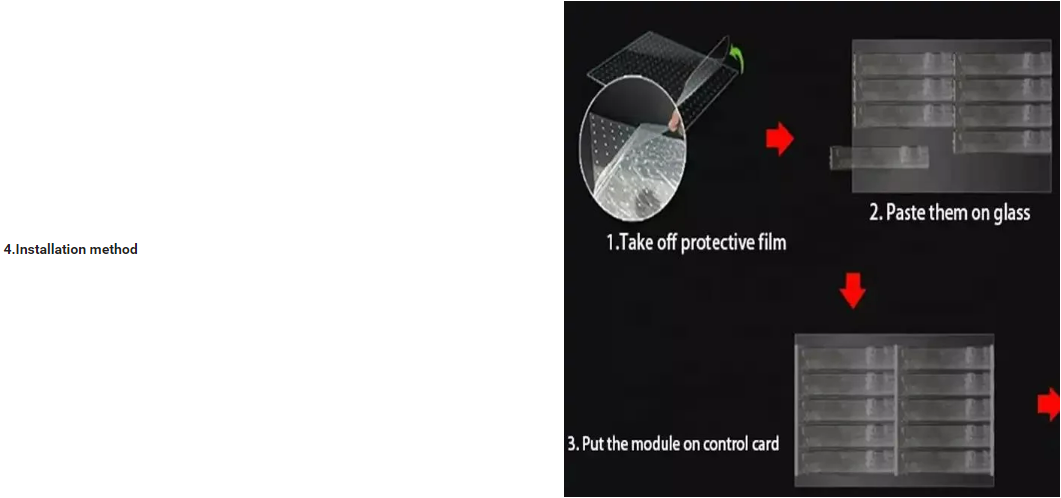

- Easy to install:Without steel structure, just stick the thin screen slightly and connect the power signal
- Flexible:For any surface
- Light and thin:As thin as 3mm, as light as 3.5kg/panel
- UV resistance:5~10 years can ensure no yellowing
- Flame retardant:Flame retardant grade V1
Technical Parameters:
| Technical Parameters | Adhesive Transparent LED Display |
| Pixel Pitch: | 6*6 mm | 8*8 mm | 10*10mm |
| LED Type: | SMD2121 | SMD2121 | SMD2121 |
| Module dimension: | 1000×240×3mm | 1000×240×3mm | 1000×240×3mm |
| Panel Weight: | 3.5 kg/sqm | 3.5 kg/sqm | 3.5 kg/sqm |
| Cabinet Material: | Aluminum+Soft PC | Aluminum+Soft PC | Aluminum+Soft PC |
| Brightness: | 1500-3000 nits | 1500-3000 nits | 1500-3000 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Maintenance: | Rear service | Rear service | Rear service |
| IP Rating: | IP20 | IP20 | IP20 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Transparancy Rate: | 72% | 60% | 65% |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:160° | H:140°；V:160° | H:140°；V:160° |
| Operational Temp: | 0℃~+40℃ | 0℃~+40℃ | 0℃~+40℃ |
| Operational Humidity: | 35%~85% RH | 35%~85% RH | 35%~85% RH |
Applications:
LED flexible transparent display is widely used indoor and window advertising, chain restaurants, shopping malls, airports, museums,financial institutions, automobile 4S stores, exhibitions, large venues, stage construction, wall construction and other fields.Currently P6, P8, P10, are available.Media player with content management software in-built, contents update by memory card or laptop via Internet.Support customization to meet various application needs.

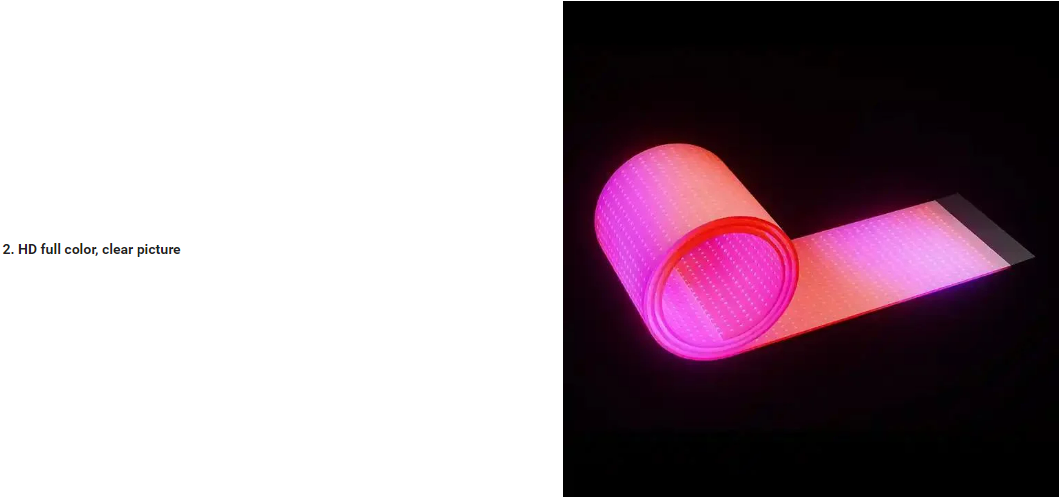

Product picture:
FAQ:
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/0DM manufacturer which has specialized in led display industry for 10 years. All customers are welcome to visit our factory, please contact us in advance if necessary!
Q2:What if I don't know how to choose and match LED screens?
A2:Before purchasing the LED display, you can rest assured that you can contact our salesman, tell us the location you need to install (indoor/outdoor), the size of the LED screen and the main purpose of the information, we have professional staff to customise the scheme and quote for you. And we can provide you with a one-stop customised solution, no need to worry about other configuration issues!
Q3:What is your MOQ?
A3:We support to take samples and any quantity order, at present the wholesale order is more, if you have any need, contact our salesman, the quantity order will provide you the most favourable price!
Q4:Do you provlde any free spare parts in each order?
A4:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable,LED lamp,lC,mask, power supply, receiving card, etc.
Q5:What about your quality?
A5:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
